TILE & STONE INSTALLATION
PRODUCTS THAT PROTECT
FLOOR + WALL PROFILES
protect floor + wall tile edges from chipping
while eliminating the need for caulking

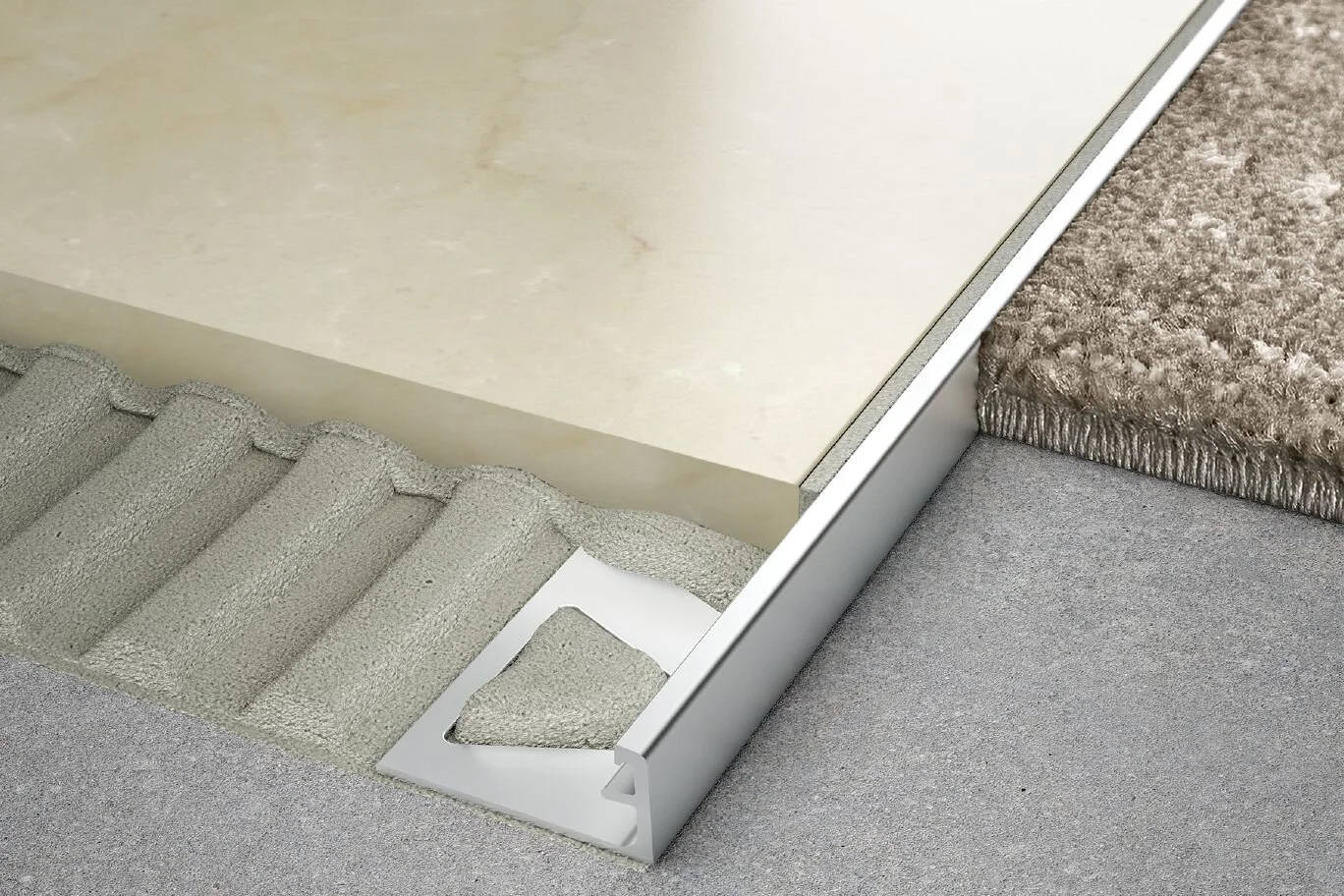

SCHIENE EDGE TRIM
Schluter®-SCHIENE is designed to provide edging
for floor or wall tile coverings. Typical applications
include edge protection where tile is bordered by
carpet, at expansion joints, or as a decorative edging
for stairs.
——————--
Stocked sizes:
5/16” - 7/16” - 1/2”

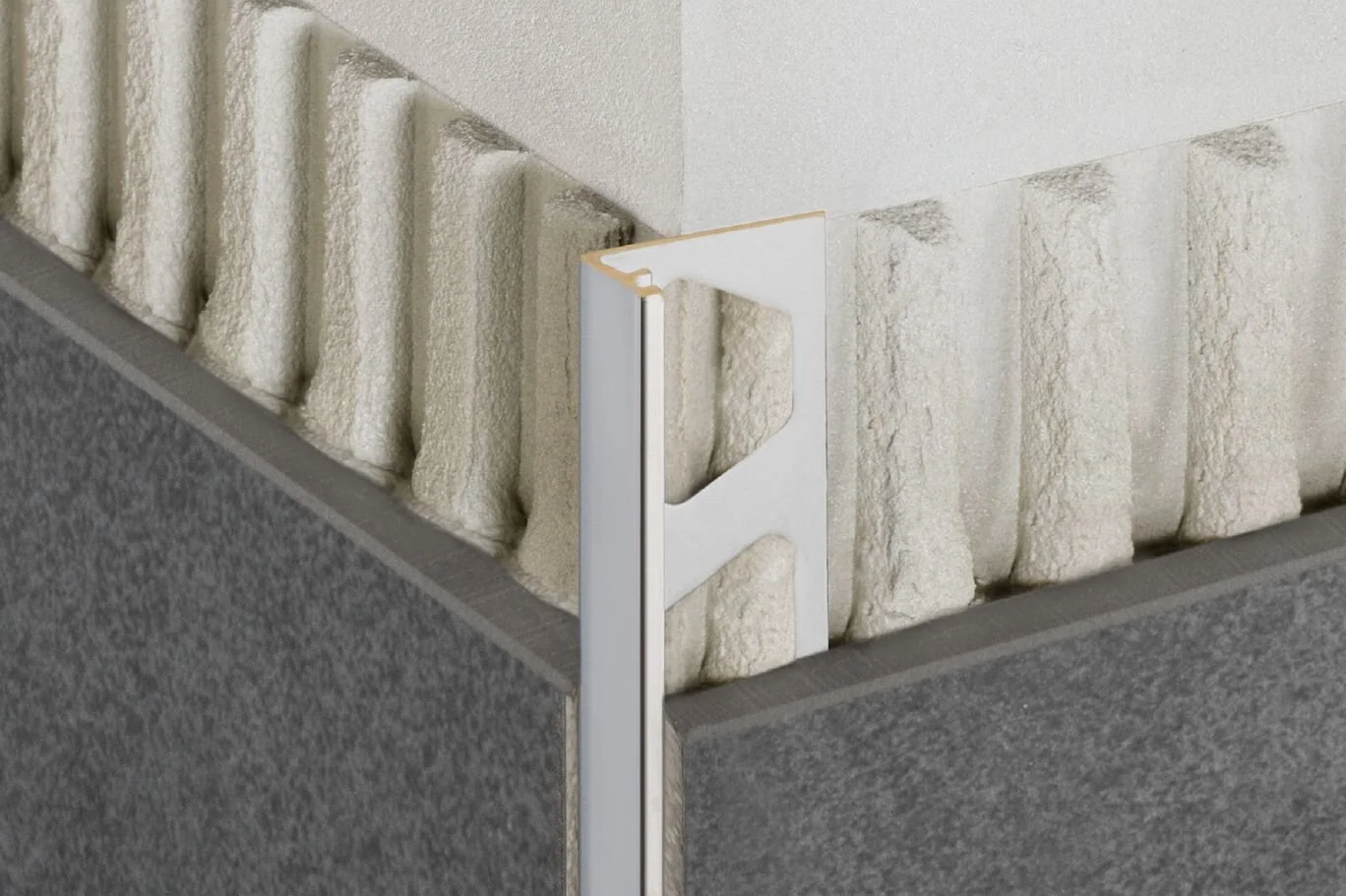

JOLLY EDGE TRIM
Schluter®-JOLLY is a finishing and edge-protection
profile for the outside corners of tiled surfaces
on walls. The vertical wall section of the profile
provides a decorative finish and protects adjacent
tiles.
Now available in 10’ lengths!!
——————-
Stocked sizes:
3/8” - 1/2” - 5/16” - 7/16”
RONDEC BULLNOSE TRIM
Schluter®-RONDEC is a finishing and edge-
protection profile for tiled edges and outside
corners of tiled surfaces. The reveal of the
profile forms a symmetrically rounded corner
along the surface edge.
——————-
Stocked sizes:
3/8” - 1/2” - 7/16”
90° in / out corners

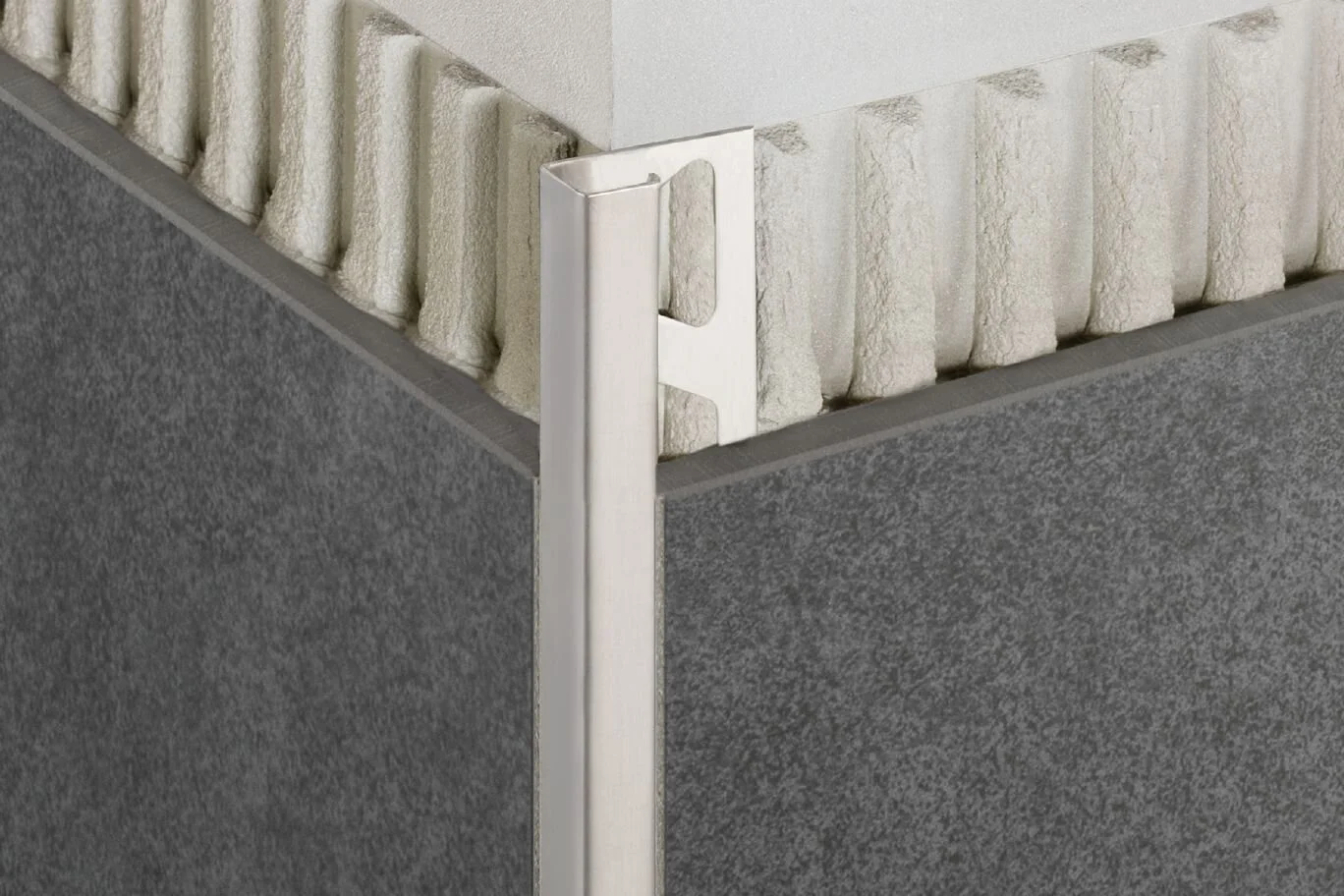

QUADEC SQUARE EDGE TRIM
Schluter®-QUADEC is a finishing and edge
protection profile for tiled edges and outside
corners of tiled surfaces, and is distinguished
by its squared reveal surface.
——————-
Stocked sizes:
3/8” - 1/2” - 7/16”
90° in / out corners
DITRA
DITRA + DITRA-XL provide excellent
uncoupling, preventing cracked
tile + grout

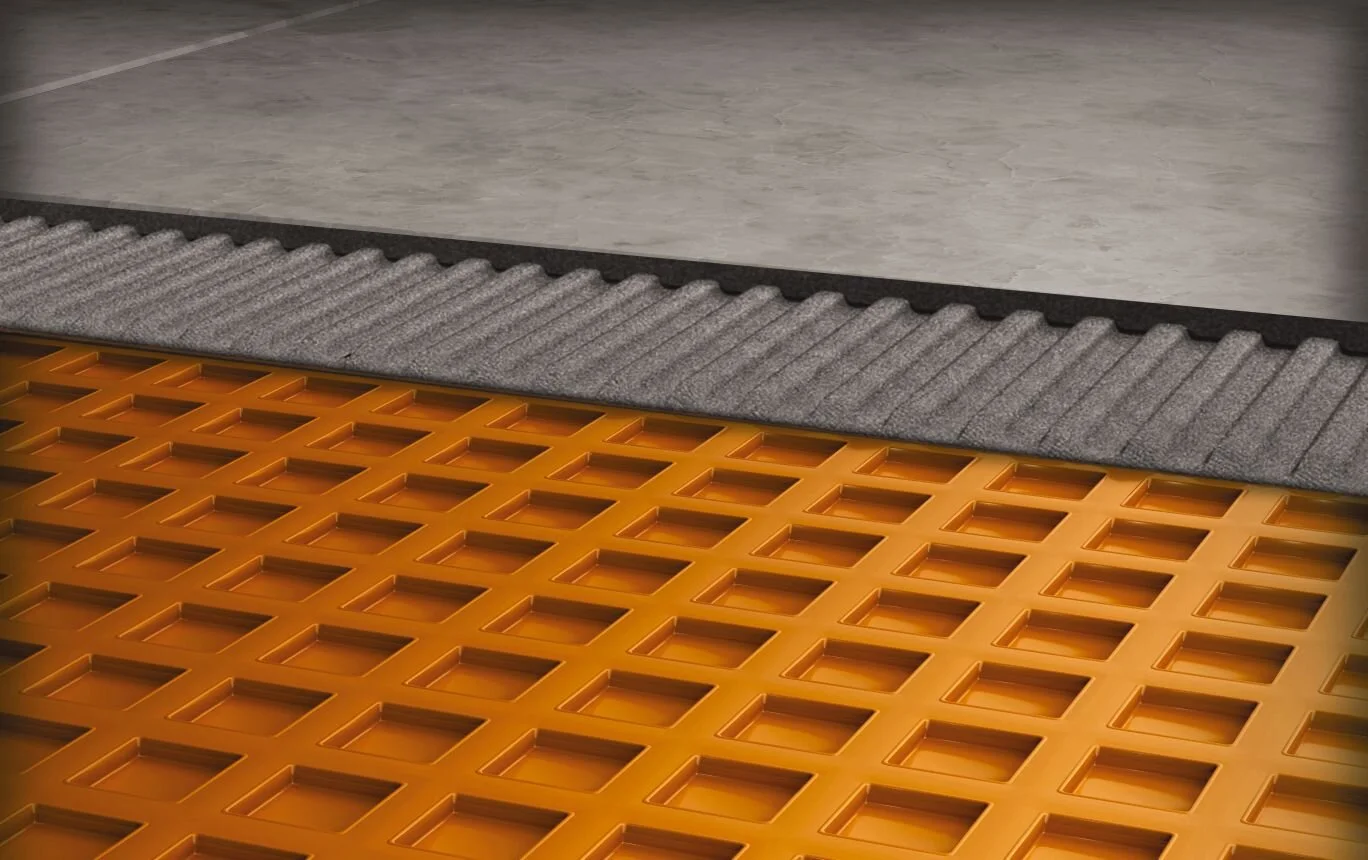

DITRA + DITRA-XL
Made of polyethylene, Schluter®-DITRA,
and DITRA-XL serve as an uncoupling layer,
waterproofing membrane, and vapor
management layer that protects moisture-
sensitive substrates, such as plywood/OSB.
———————
Available sizes:
3’3” x 16’5” | 54 SF
3’3” x 45’9” | 150 SF
3’3” x 98’5” | 323 SF
DITRA-HEAT
DITRA-HEAT provides customizable,
electric floor warming capabilities

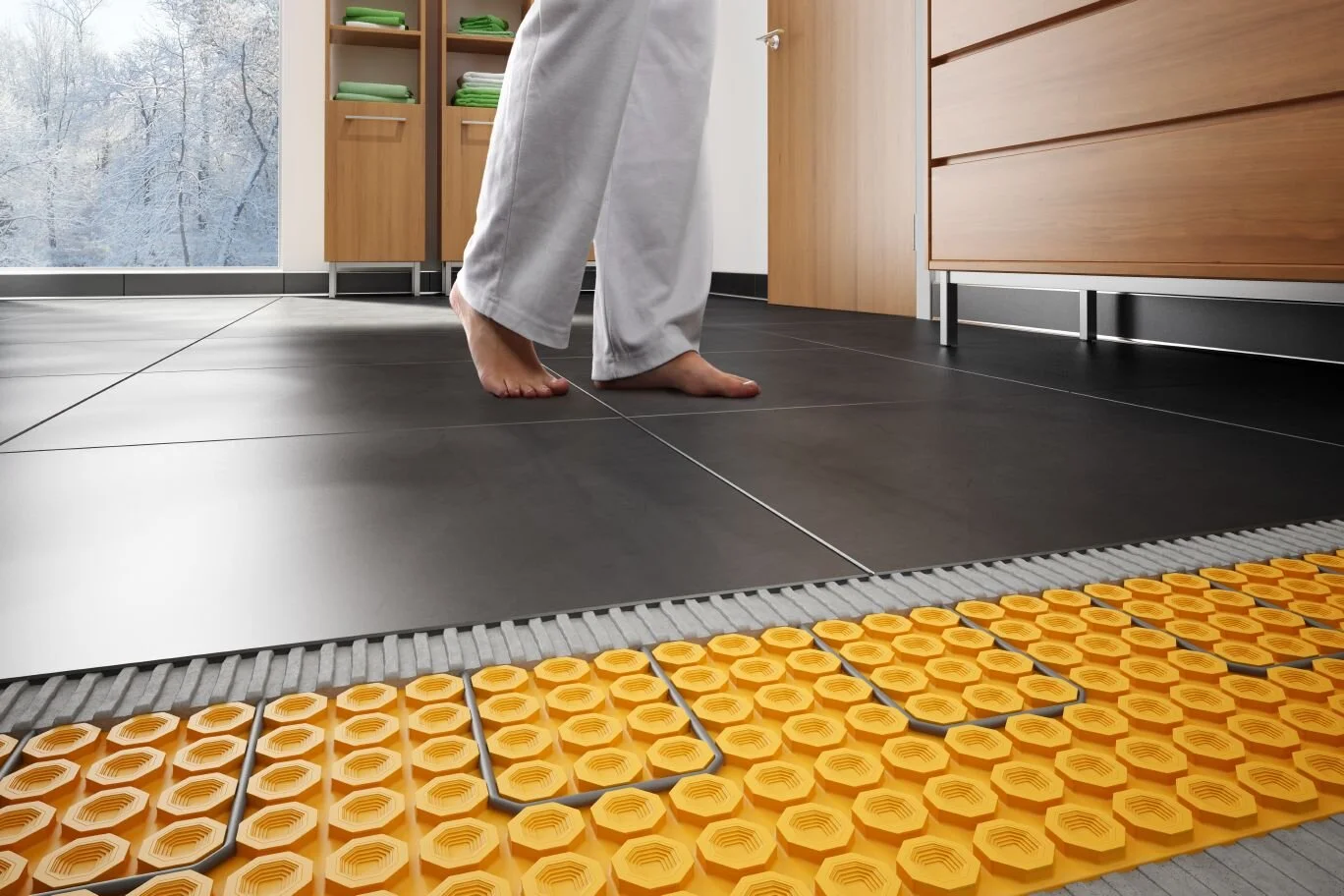

DITRA-HEAT
Schluter®-DITRA-HEAT integrates customizable,
comfortable electric floor warming with the
functions associated with DITRA: uncoupling,
waterproofing, vapor management, and support
to ensure a long lasting installation.
Suitable for applications with engineered wood,
vinyl, wood plastic composite (WPC), luxury vinyl
tiles (LVT), luxury vinyl planks (LVP), stone plastic
composite (SPC) tiles and planks, and laminate
flooring.
———————
Available membrane sizes:
DITRA-HEAT
3’3” x 2’7” Sheet | 8.6 SF
3’3” x 41’1” Roll | 134.5 SF
DITRA-HEAT DUO
3’3” x 2’7” Sheet | 8.6 SF
3’3” x 3’3” Roll | 108 SF
—————————
Available cable sizes:
120 V
35.3 FT - 52.9 FT - 70.5 FT
88.2 FT - 105.8 FT - 169.8 FT
212.9 FT
220 V
480.5 FT

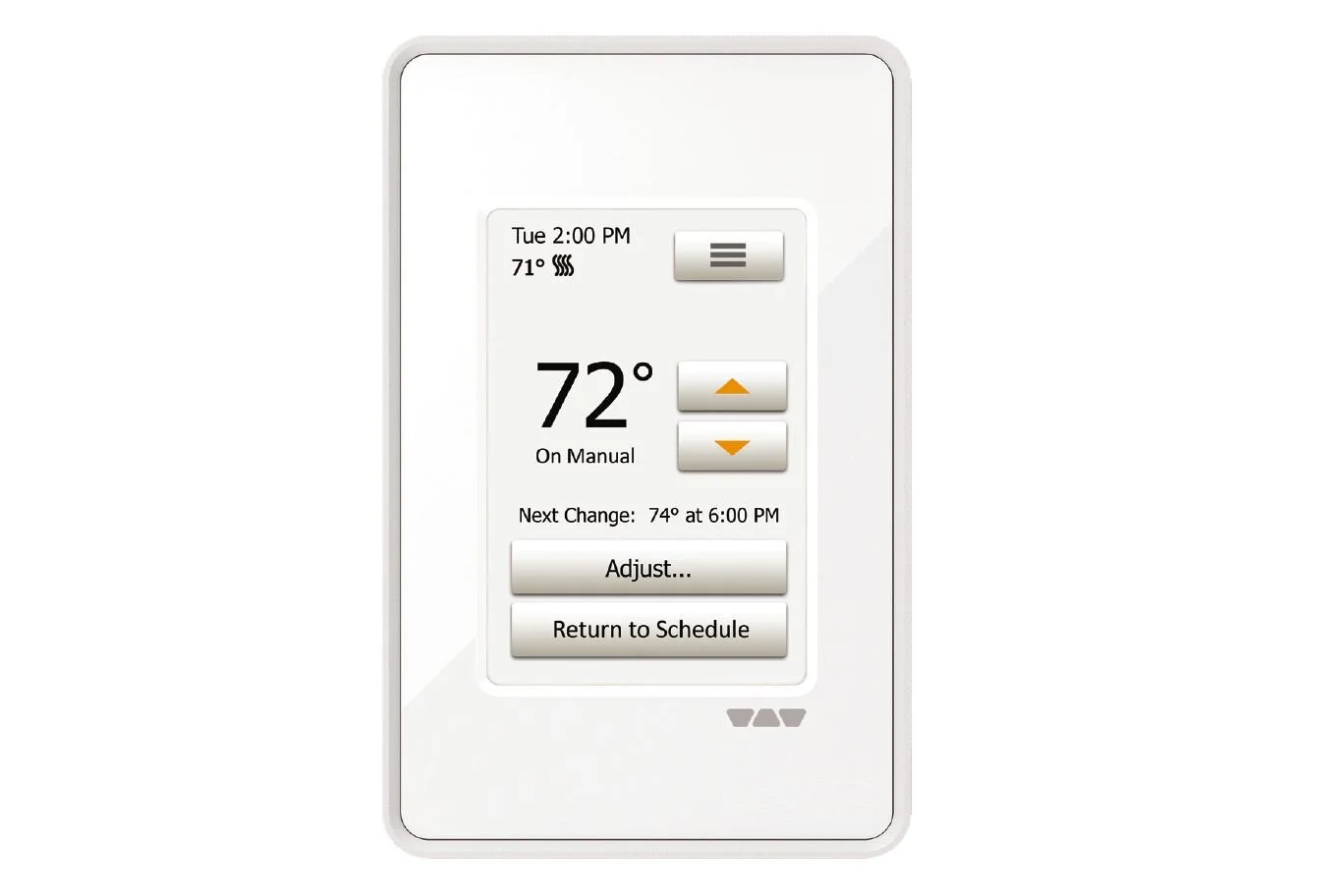

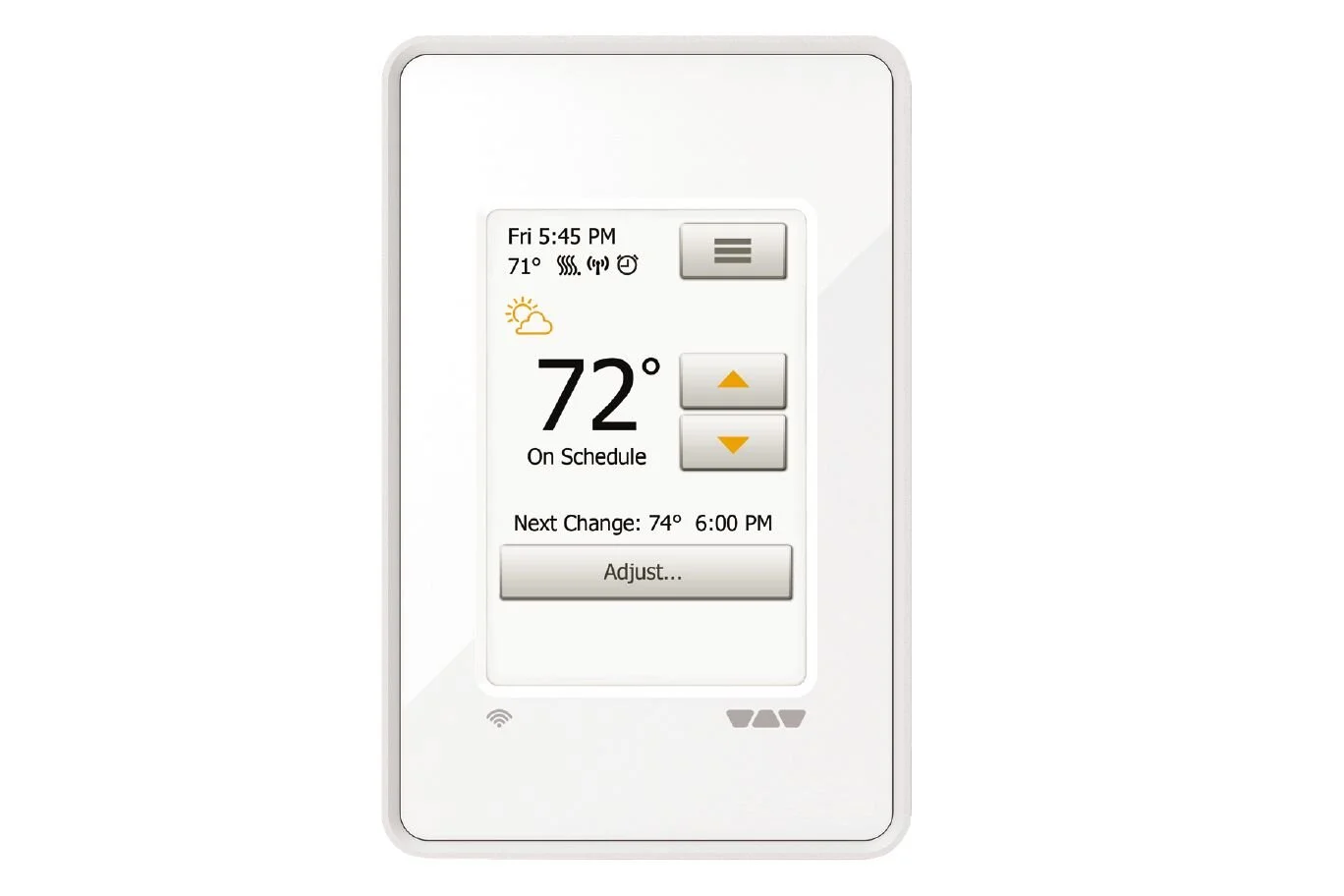

E-WIFI THERMOSTAT
DITRA-HEAT-E-WiFi is a programmable WiFi
touchscreen thermostat used to control
DITRA-HEAT-E-HK heating cables (either 120 V or 240 V).
The thermostat features a built-in Class A ground
fault circuit interrupter (GFCI) and includes a
floor temperature sensor.
DITRA-HEAT-E-WiFi is operated via LCD touchscreen
controls and features a pre-set schedule for
convenience, which may be programmed to fit
any schedule. Two heating cables may be connected
to the thermostat, up to the total heating load
limit of 15 amps.
E-RT THERMOSTAT
DITRA-HEAT-E-RT is a programmable touchscreen
thermostat used to control the DITRA-HEAT-E-HK
heating cables (either 120 V or 240 V). The thermostat
features a 5 mA built-in ground fault circuit
interrupter (GFCI) with indicator light and includes
a floor temperature sensor.
DITRA-HEAT-E-RT is operated via LCD touchscreen
controls and features a pre-set schedule for
convenience, which may be programmed to fit
any schedule. Two heating cables may be connected
to the thermostat, up to the total heating load
limit of 15 amps.

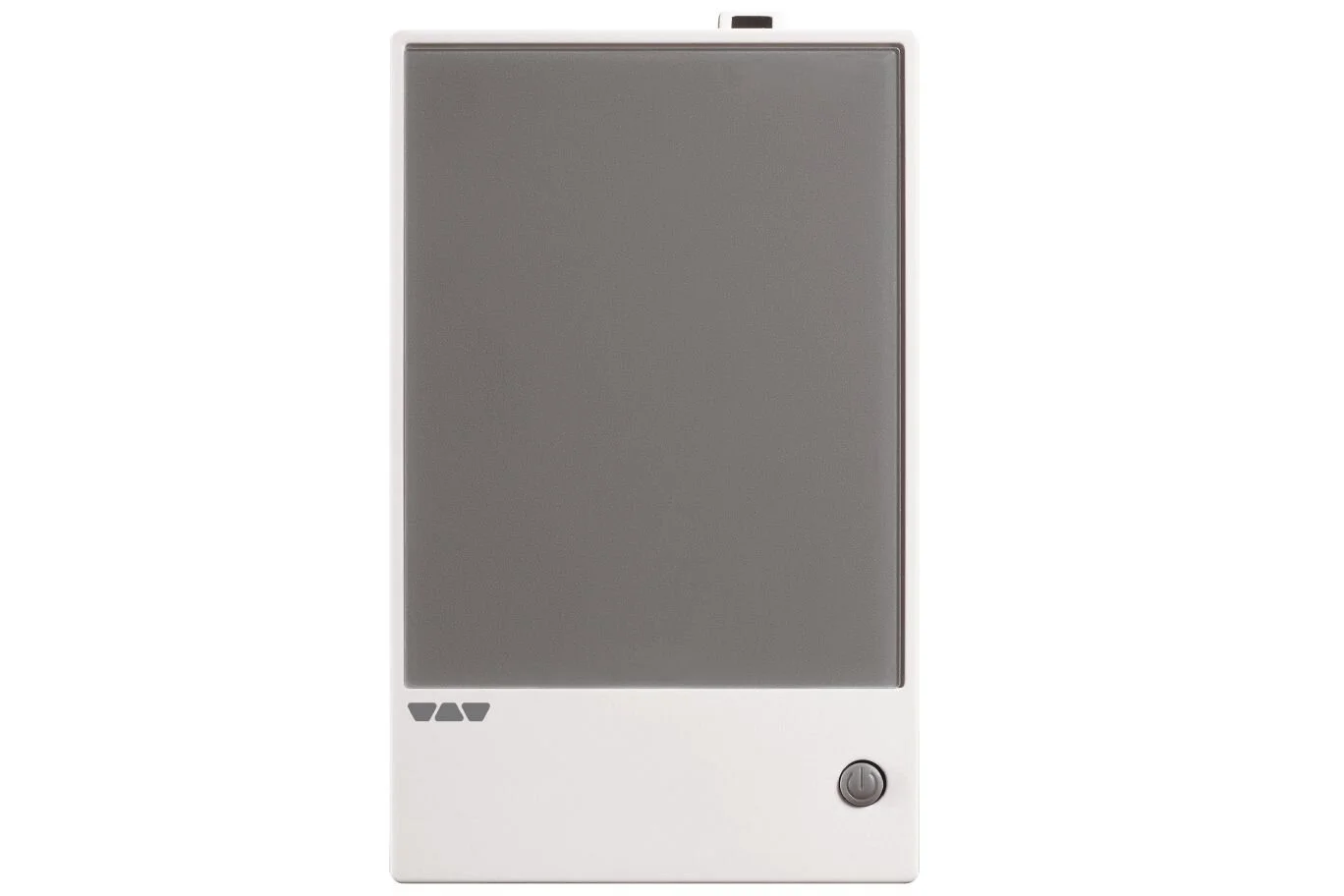

E-RR POWER MODULE
The power module may be used in conjunction with
the DITRA-HEAT-E-RT or DITRA-HEAT-E-R thermostats
when the heating load exceeds 15 amps (e.g., in large
floor applications) to maintain a single point of
control.
Up to 16 DITRA-HEAT-E-RR power modules may be
connected in series via low voltage signal wire
to a single DITRA-HEAT-E-RT or DITRA-HEAT-E-R
thermostat.

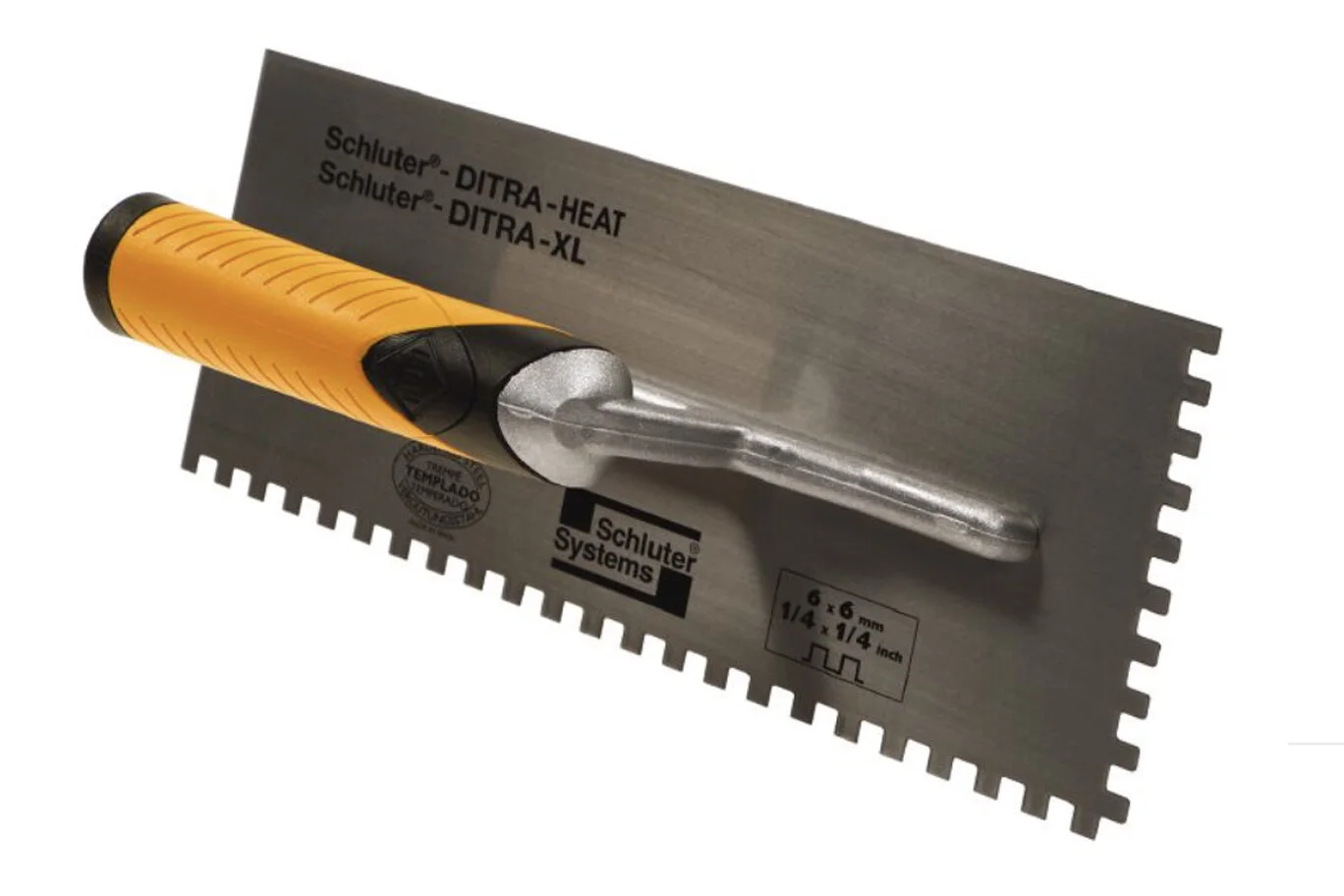

DITRA-HEAT/XL TROWEL
Schluter® DITRA-HEAT/-DITRA-XL-TROWELS feature
1/4” x 1/4” square-notched designs to effectively
install DITRA-XL, DITRA-HEAT, and DITRA-HEAT-DUO,
respectively.

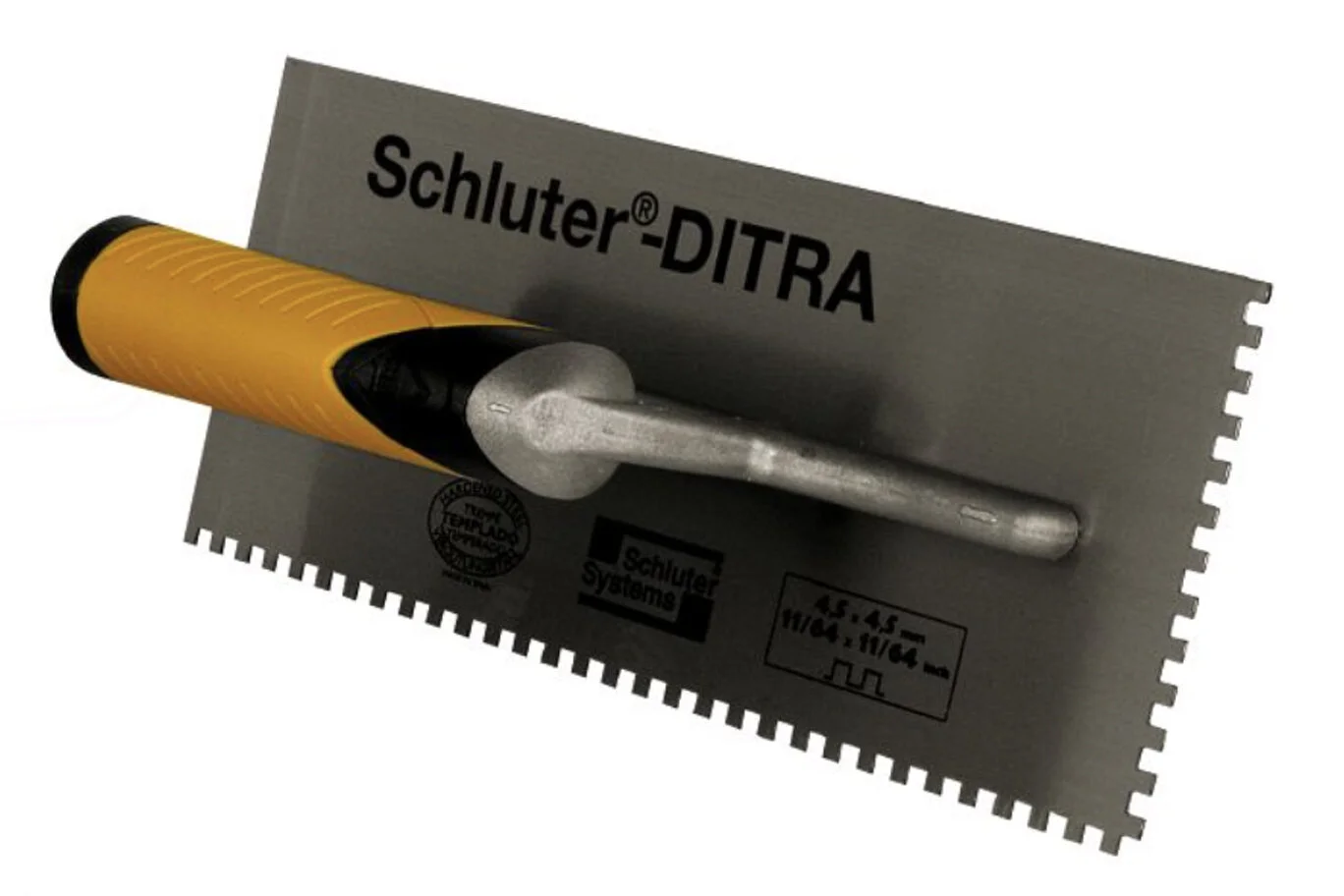

DITRA TROWEL
Schluter®- DITRA-TROWELS feature 11/64” x 11/64”
square-notched designs to effectively install
DITRA uncoupling layers, waterproofing membranes,
and vapor management layers that protect
moisture- sensitive substrates, such as plywood/OSB.
